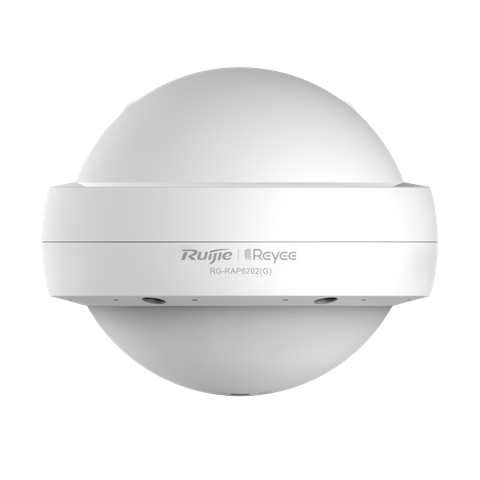

Ruijie RG-RAP6262(G) – Outdoor Wi-Fi 6 Access Point

Description

Key Specifications

• Wi-Fi Standard: Wi-Fi 6 (802.11ax)
• Speed Class: AX1800
• Maximum Wireless Speed: 1,774 Mbps
• 2.4 GHz Speed: 573 Mbps
• 5 GHz Speed: 1,201 Mbps
• Radio Design: Dual-band 2×2 MU-MIMO
• Ethernet Ports: 2 × Gigabit RJ45
• Power Supply: 802.3at PoE+ or DC 12V/2A
• Maximum Power Consumption: 18 W
• Protection Rating: IP68 (waterproof and dustproof)
• Lightning Protection: 6 kV
• Operating Temperature: -30°C to +65°C

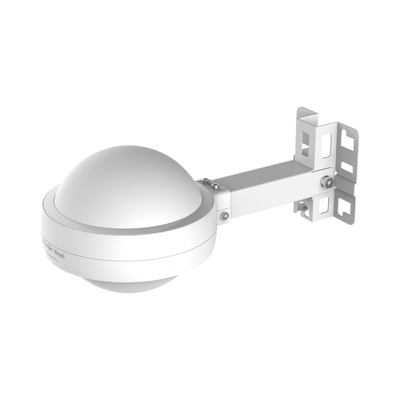

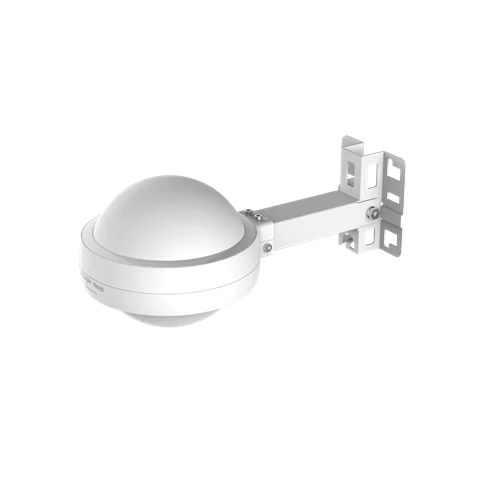

• Mounting: Pole or wall mount
• Dimensions: Ø200 × 166 mm
• Weight: ≤ 1.2 kg
• Up to 256 concurrent wireless clients
• Over 500 total client connections supported
• Recommended active users: 80–150 users depending on traffic load
• Maximum devices managed by the controller/cloud: 300 devices

Coverage Range

• 2.4 GHz: Up to 100 meters radius
• 5 GHz: Up to 300 meters radius (open environment)
