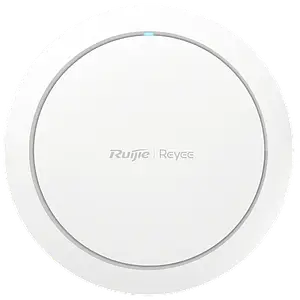

Access point, Ruijie RG-RAP2266-indoor

Description

Key Features & Specifications

• Wireless Standard: Wi-Fi 6 (802.11ax)

• Dual-Band Performance:

  • 2.4 GHz: Up to 574 Mbps

  • 5 GHz: Up to 2402 Mbps

• Aggregate Throughput: Up to 2976 Mbps

• MIMO Configuration: 2×2 MU-MIMO on both bands

• Client Capacity: Supports up to 512 clients (110 recommended for optimal performance)

• Network Port: 1 × Gigabit Ethernet (10/100/1000 Base-T)

• Power Supply: Supports 802.3at PoE; maximum power consumption ≤18W

• Dimensions: Ø220 mm × 52.6 mm

• Weight: <0.55 kg

• Operating Temperature: 0°C to 40°C

• Management & Features:

  • Reyee Mesh support for simplified network expansion

  • Smart AI roaming with 802.11k/v for seamless connectivity

  • Standalone captive portal via Ruijie Cloud

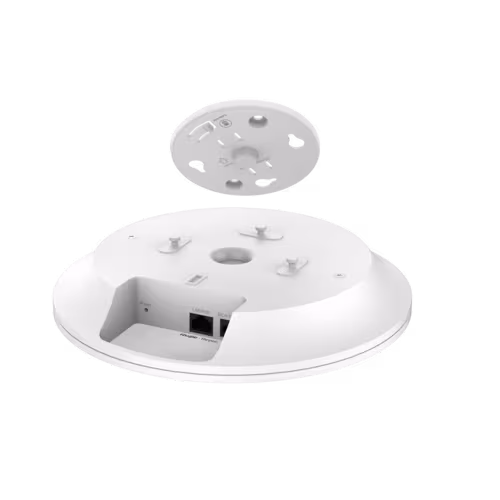

  • Easy installation with a rotating mechanism

  • Free cloud management and remote monitoring
